What Is a Swamp Cooler for Shop Spaces?
A swamp cooler is another name for an evaporative cooler. It cools air by passing it through water soaked pads, which lowers the temperature while adding moisture to the air. This process depends on outdoor humidity and on fresh air reaching the pad, so how well a Symphony Venticool unit performs in a shop depends on the premises as much as on the unit itself.
Can a Swamp Cooler for Shop Use Work with Only One Entrance?
Yes, but only once the entrance is checked as an actual air exchange path rather than assumed to work by default. The cooler’s intake arrangement is a separate question from how air already in the shop escapes. For a portable Symphony Venticool unit inside the shop, check whether it draws in outdoor air or mainly recirculates indoor air. An open doorway alone does not confirm effective air exchange through the occupied space.
How Do Different Single Entrance Layouts Compare for Swamp Cooler Suitability?
Before choosing a Symphony Venticool model, it helps to see how common premises types compare. These are conditional assessments, not promises that a particular arrangement will work.
Premises | Practical implication before buying |
Shallow shop with an entrance kept open | Assess whether the arrangement supplies outdoor air and allows indoor air to leave without obstructing access. |
Deep shop with only a front entrance | Check airflow to the rear; air exchange near the doorway may leave the back poorly served. |
Closed showroom without usable openings | Assess ventilation modifications before choosing the cooler. |
Shop with usable side ventilation | Check opening position and available airflow against the proposed cooler arrangement. |
Shop with an enclosed rear room | Assess the rear room separately, including its air supply and exit route. |
Workshop with one shutter | Coordinate comfort cooling with process heat and dedicated dust or fume extraction. |
What Should You Check About Doorway Operation Before Buying?
Doorway operation covers how long the door realistically stays open during trading hours, the actual clear width once fittings and signage are accounted for, customer movement, outdoor wind, and nearby traffic or dust drawn in. Access routes and emergency exits must stay clear of the Symphony Venticool unit, hose or cable at all times, whatever position a shop finally chooses.

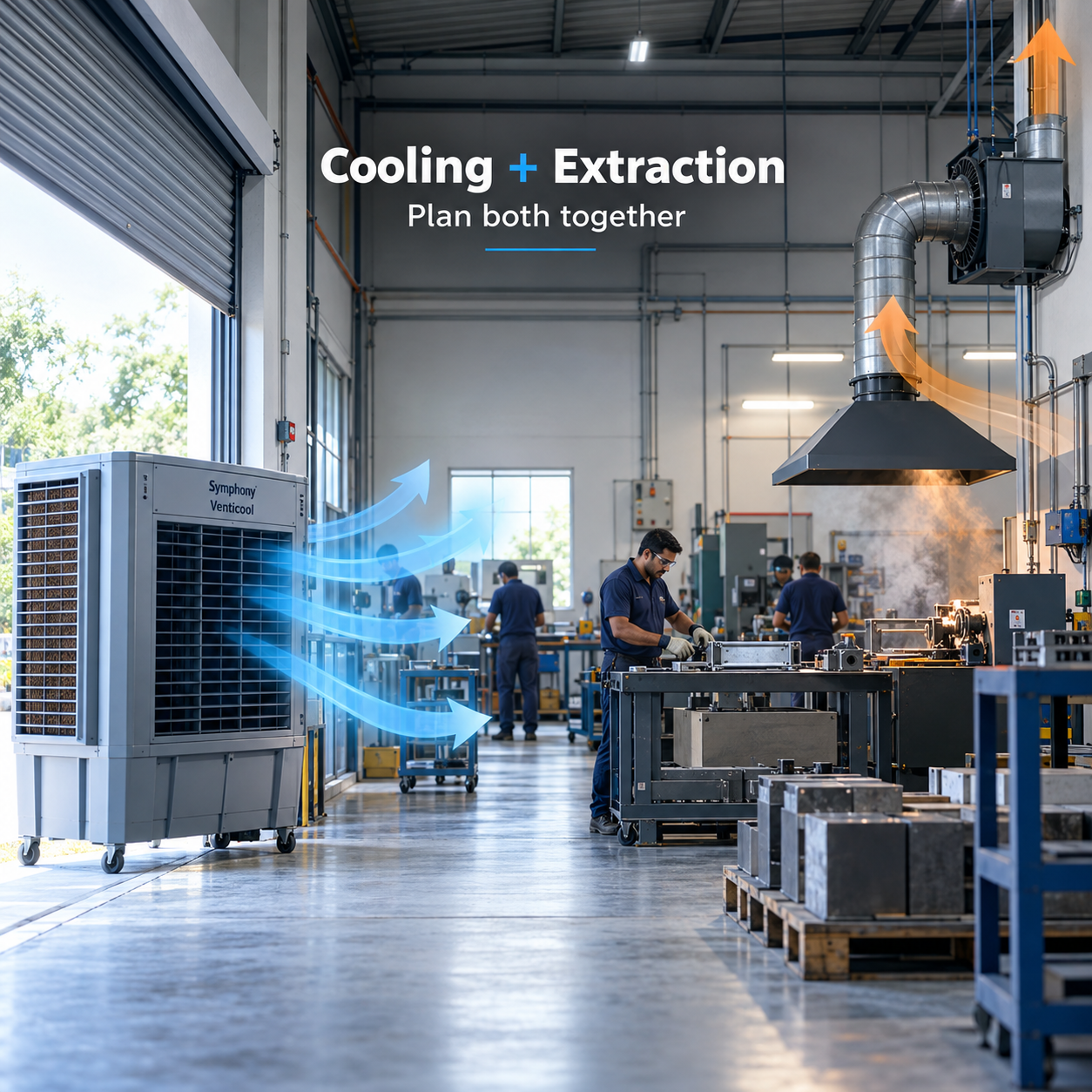

How Should You Coordinate Cooling and Extraction in a Workshop?
Shutter position, a Symphony Venticool cooler’s intake arrangement and any existing extraction system need reviewing together rather than bought as separate decisions later. Comfort cooling addresses worker temperature, while extraction removes fumes or dust generated by a process, and one should never be expected to perform the other’s job. Confirming this split before equipment is ordered avoids installing a cooler where dedicated extraction was actually required.
What Should a Ventilation Assessment Cover Before You Buy?
A ventilation assessment should record the shop’s dimensions, occupancy patterns, which openings are available during business hours, how a rear room connects to the main area, outdoor temperature and humidity, internal heat sources, existing ventilation, and access to water and power. An exit opening does not guarantee adequate cooling in humid weather. Direct evaporative cooling adds moisture to the air, so local temperature and humidity need assessing alongside the layout before a Symphony Venticool model is chosen, a limitation the US EPA also notes for evaporative systems generally.
When Does a Shop Need Additional Ventilation Beyond a Swamp Cooler?
Additional ventilation becomes necessary once the assessment shows no usable exit path, or the planned arrangement cannot move air through occupied areas. A side or rear opening, a transfer path between rooms, or mechanical exhaust are options a qualified installer can review before a Symphony Venticool model is finalised. Retail tenants should also confirm whether landlord consent is needed before any physical change to the premises.
Which Symphony Venticool Features Should Shop Owners Check?
Features vary by model, so a decision should rest on the documented specifications of the specific Symphony Venticool unit under consideration rather than the range as a whole. Air delivery, discharge direction and installation requirements decide whether a model can actually move air through the occupied area, and these should be the starting point rather than secondary details, confirmed directly with the supplier for the chosen model. The Movicool L65S documents lockable, skid resistant castor wheels and a wide inlet mouth that makes refilling easier, but features like these support day to day operation rather than solve a missing exit path.
What Should You Confirm Before You Buy a Swamp Cooler for Shop Use?
Before buying a Symphony Venticool cooler, work through these points.
- Every usable opening in the shop.
- Whether the front door is typically open or closed.
- Shelving, partitions and rear room connections.
- Outdoor temperature and humidity for the location.
- Documented specifications of the specific model under consideration.
- Whether ventilation changes or landlord consent are needed.
- Power, water and service access near the proposed position.
A common mistake is buying by floor size alone, since the layout itself decides whether a given model will work.
Who Is Symphony Venticool and What Does It Offer?
Symphony Venticool is the large space and commercial cooling brand under Symphony Limited, a company that has manufactured evaporative air coolers since 1988. Its range spans Venti-Cool ducted systems for factories and warehouses to Movicool commercial coolers designed for shops, offices and showrooms. Which Symphony Venticool model suits a single entrance shop depends on the premises itself, so the layout should be checked against the specific unit’s documented specifications before a purchase is made.
Conclusion
The assessment can establish whether evaporative cooling is suitable and which model to consider.
Frequently Asked Questions
Swamp Cooler for Shop Layouts with Only One Entrance: What to Check Before Buying
Can I use a swamp cooler for shop premises with only one entrance?
Often yes, provided that entrance or another opening offers a dependable exit path during trading hours, checked separately from the Symphony Venticool unit's air intake.
Will a bigger cooler fix poor airflow to the back of a deep shop?
No. Size does not create an exit path. The airflow route from the cooler through occupied areas to an exit opening needs assessing before a larger model is chosen.
Do shelves and partitions reduce how far cooled air travels?
Yes. They interrupt the airflow route, especially to an enclosed rear room, so published Symphony Venticool air throw figures should not be read as coverage through them.
Does fitting an exhaust fan alone make a shop suitable for a swamp cooler?
Not on its own. An exhaust fan can help remove air, but it does not confirm that outdoor air is reaching the Symphony Venticool unit's intake or moving through the occupied area. Fan placement still needs checking against the shop's doorway, shelving and rear room layout.
