How does the Venti-Cool 8U contribute to cool air ventilation in industries?

The Venti-Cool 8U is designed to provide continuous cool air ventilation in industrial environments, ensuring a steady flow of fresh air while lowering indoor temperatures. Its high-powered air delivery of 8,000 CMH effectively circulates cool air, reducing heat buildup from machinery and enclosed workspaces. This improves overall air quality and creates a more comfortable environment for employees, making it an ideal choice for factories, workshops, and storage units.

What installation options are available to optimize ventilation cooling with the Venti-Cool 8U?

The Venti-Cool 8U offers flexible installation options to maximize cooling and ventilation efficiency. It supports both bottom and side air discharge, allowing businesses to adapt the airflow direction based on their workspace layout. Additionally, with ducting capabilities of up to 9 meters and support for up to 5 air outlet grills, it provides customized cooling solutions for multiple zones within an industrial setup.

What makes the Venti-Cool 8U an efficient ventilation cooling system?

Unlike traditional cooling systems that only lower temperatures, the Venti-Cool 8U functions as a ventilation cooling solution that enhances airflow while cooling the space. With its three-side cooling pads and advanced fan system, it not only delivers fresh, cooled air but also helps remove stagnant, hot air from the workspace. This dual function is particularly useful in areas with limited natural ventilation, ensuring a healthier and more breathable atmosphere.

How does the Venti-Cool 8U reduce indoor heat levels without excessive power consumption?

The Venti-Cool 8U uses evaporative cooling technology, which is far more energy-efficient than conventional air conditioning. With a low power consumption of just 0.37 kW, it cools air naturally by drawing warm air through water-saturated honeycomb cooling pads, reducing temperature effectively without excessive energy usage. This makes it an economical choice for businesses looking for sustainable cooling solutions.

What are the advantages of using an industrial ducting cooler for ventilation cooling?

Industrial ducting coolers like the Venti-Cool 8U are designed to offer precise airflow control, ensuring that cooled air is directed where it’s needed most. Unlike standard air coolers, they can be connected to multiple ducts and air outlet grills, allowing for customized airflow distribution. This flexibility makes them ideal for factories, workshops, and warehouses where different zones require varying levels of cooling and ventilation.

Industrial Cooler with Ducting, Air Washer Cooler VC40

*Terms & Conditions apply

Industrial Air Cooling System with Ventilation

Buy Venti-Cool 40 Industrial air cooling ventilation system

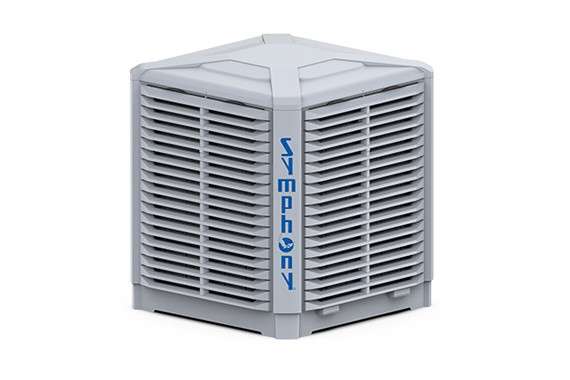

Venti-Cool - 40 Industrial Ducting Cooler

Modular units suitable for any area. One unit can cool up to 2500 sq.ft. (232 sq.m).*
High quality air pre-filter to protect the cooling pad
Weather resistant UV Stabilized high grade plastic body
3 kW, motor for powerful air delivery of 40,000 CMH
Four side cooling pads for superior cooling
Easy installation and maintenance

*Scroll down for disclaimer

Book Your Free Site Inspection Now!

Universal Installations for Industrial Cooler

A Ventilation Cooling unit can be adjusted to fit into both large and small spaces. This flexibility also makes future expansion simple.

Technical Specifications of VC40D

Discharge -
Down
Nominal Max Airflow (m ³/h) -
40000
Cooling area (sq.ft.) -
Up to 2500
Net weight (kg) -
103
Operating weight (kg) -
171
Input power supply (V/Hz/Ph) -
380-415/50/3
Motor power (kw) -
3000

Outside dimensions (LxBxH in mm) -
1225 x 1225 x 1350
Air outlet dimensions (HxW in mm) -
777 x 777
Body material -
UV Stabilized High Grade Plastic
Tank capacity (L) -
40
Air moving device -
Fan
Fan diameter (mm) -
710
Cooling media -
Honeycomb pads

Pad thickness (mm) -
100
Cooling surface area of pad (sqm) -
3.6
Minimum cooling efficiency(%) -
80
Number of speeds (nos.) -
1
Duct length (m) -
Up to 125
Air Outlet Grills (N) [ 250mm X 250mm ] -
Up to 20
Container quantity (40HQ) -
-

Outside dimensions
(LxBxH in mm) -
1000 X 940 X 800
Air outlet dimensions
(HxW in mm) -
450 x450
Body material -
UV Stabilized Engineering Plastic
Tank capacity ([tr.) -
23
Air moving device -
Fan
Fan diameter (mm) -
425
Cooling media -
Honeycomb pads

Technical Specifications of VC40T

Discharge -
Top
Nominal Max Airflow (m ³/h) -
40000
Cooling area (sq.ft.) -
Up to 2500
Net weight (kg) -
113
Operating weight (kg) -
181
Input power supply (V/Hz/Ph) -
380-415/50/3
Motor power (kw) -
3000

Discharge -
Top
Nominal Max Airflow (m ³/h) -
40000
Cooling area (sq.ft.) -
up to 25500
Net weight (kg) -
113
Operating weight (kg) -
181
Input power supply (V/Hz/Ph) -
380-415/50/3
Motor power (kw) -
3000

Why VC40?

Parameters	Air washer	VC40	Benefits in VC40
Body material	Metal	UV Plastic	No corrosion
Motor power	7 - 10 kW	3 kW	Low power consumption
Footprint area	Very large	Compact	Space saving
Weight	Very heavy	Light weight	Easy and low-cost installation
Maintenance	Very high	Very low	Low maintenance cost

Services we’re offering

Industry Use Cases for Duct Coolers

Automobile Industry

Suitable for workshops making ancillaries and parts, large garages, and service centers. Gain indirect benefits like improved employee morale and productivity leading to greater innovation.

Agriculture Industry

Suitable for all agricultural produce markets in the supply chain. Helps improve employee morale, as well as reduces food spoilage thus resulting in higher profitability. This Industrial cooler price is much less than air conditioning system.

Metal Industry

Suitable for workshops, plants, mills making molded or beaten goods. Enjoy benefits like a positive work environment, reduced downtime, and higher profitability.

Textile Industry

Suitable for textile mills, bureaus, workshops, and warehouses. Gain indirect benefits like improved employee morale, concentration, and productivity.

IT Industry

This cooler ventilation system is suitable for large IT parks and smaller innovation centers. Enhances employee morale and productivity while fostering innovation.

Leather Industry

Ventilation cooling system is suitable for slaughterhouses and tanneries, as well as workshops making leather goods. Gain indirect benefits like higher innovation, leading to higher profitability.

Petrochemicals Industry

Suitable for petroleum cracking plants, chemical factories, warehouses, and petrol pumps. Cool air ventilation system helps improve employee morale and productivity and reduces absenteeism.

Restaurants & Cafe

Suitable for large spaces such as restaurants, cafés, and canteens. Enjoy advantages like improved employee morale as well as increased footfalls and larger orders.

Healthcare Industry

Suitable for hospital wards, nursing homes, and polyclinics, to prevent recirculation of stale air in line with W.H.O. recommendations. Gain indirect benefits like higher staff morale as well as improved patient outcomes.

Related Venti-Cool Products

Venti-Cool 11U

Venti-Cool 20U

Venti Cool Industrial Air Cooler for Industries

Venti-Cool 25U

Movicool

Accessories

Symphony LSV is designed for quick and easy installation. Any installation can be completed within a few hours!

*Actual measurements may vary within +/-15% of specified value

Note: The images and videos of the products are for representation only. The actual product colour/ features / size may vary. Product information shown above is under standard lab test conditions.
